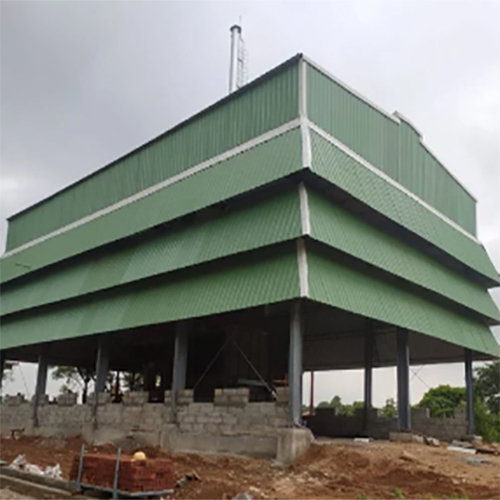

Prefabricated Boiler Shed

Name: Prefabricated Boiler Shed
Brand: PEBS TECH (INDIA) PRIVATE LIMITED
Price: 200.0 INR
Availability: InStock

Price 200.0 INR/ Square Foot

Get a Price/Quote

MOQ : 8000 Square Foots

Prefabricated Boiler Shed Specification

Life Span
15-20 years

Wall Materials
Prefabricated Insulated Sandwich Panels

Window Material
Aluminum Frame Glass

Door Material
Metal Sheet with Insulation

Dimension (L*W*H)
10m x 6m x 5m

Connection
Bolted and Welded Joints

Open Style
Swing

Insulation
PUF (Polyurethane Foam) 40 kg/m3

Material
Mild Steel and GI Sheets

Roof Material
Galvanized Corrugated Steel Sheets

Thickness Of Wall Panel
50mm

Door
Single & Double Hinged Doors

Window
2 Units, Size 1200mm x 900mm

Window Style
Sliding and Fixed

Floor Material
Concrete

Floor Load
5 kN/m2

Roof Dead Load
0.5 kN/m2

Roof Live Load
0.75 kN/m2

Earthquake Intensity
Designed for Zone IV/V

Color
Gray and Blue

Use
Boiler Housing, Industrial Use

Surface Treatment
Powder Coating/Paint for exterior

Wind Load
Designed for up to 150 km/h

Sound Insulation
30 dB reduction

Transportability
Easily Dismantled and Shifted

Assembly Type
Modular Site Assembly

Lighting Provision
Pre-installed Cable Trays and Fixtures

Foundation Type
RCC Plinth or Steel Piles

Gutter & Downpipe
Integrated Pre-fabricated GI System

Structural Frame
Pre-engineered Steel Sections with Anti-corrosive Coating

Fire Resistance
Wall and Roof Panels up to 2 hours

Ventilation
Turbo Air Vents and Louvers

Prefabricated Boiler Shed About

Experience the paragon of industrial safety with our Prefabricated Boiler Shed, designed using splendid pre-engineered steel sections. Offered at an unbeatable price, this impeccable structure delivers robust fire resistance-wall and roof panels stand strong for up to 2 hours. The anti-corrosive and powder-coated exterior, coupled with advanced ventilation systems and top-tier sound insulation, ensure optimal performance. With modular assembly and easy transportability, grab yours for a solution that balances durability, versatility, and affordability-making it ideal for industrial use across India.

Material Excellence and Industrial Utility

Crafted using mild steel, GI sheets, and insulated sandwich panels, the Prefabricated Boiler Shed exemplifies sturdiness and longevity. PUF insulation ensures optimal thermal efficiency, while galvanized roofing enhances protection against harsh weather. This structure is perfect for housing boilers and is adaptable for varied industrial applications. The factory-finished panels and modular design enable easy on-site assembly, making it highly suitable for projects that demand both speed and precision in installation.

Easy Sample Viewing, Wide Availability, and Rapid Fulfillment

Explore a sample Prefabricated Boiler Shed to assess its construction quality before finalizing your order. Our main domestic market spans across India, ensuring prompt transportation to your site. With substantial supply ability, we can accommodate orders of various sizes. Depend on us for swift order completion and reliable delivery at the lowest price-designed to support seamless planning and project execution for all your industrial boiler housing requirements.

FAQ's of Prefabricated Boiler Shed:

Q: How is the Prefabricated Boiler Shed assembled on site?

A: The shed uses a modular assembly method with bolted and welded joints, allowing for swift and precise site installation. All panels, structures, and fixtures are prefabricated for efficient assembly upon delivery.

Q: What benefits does the anti-corrosive and fire-resistant construction provide?

A: The anti-corrosive coating enhances durability, especially in harsh industrial environments, while fire-resistant panels offer up to 2 hours of safety, significantly improving workplace security and longevity.

Q: Where can this boiler shed be used apart from boiler housing?

A: While ideal for boiler housing, the system's robust design and insulation make it suitable for various industrial activities, including storage rooms, control rooms, or any application requiring enhanced safety and sound insulation.

Q: What is the process for ordering and delivery?

A: Once you select your specifications and place an order, our team arranges for sampling if required, followed by prompt transportation and on-site assembly, ensuring timely completion at an affordable price.

Q: What size and structural features does the shed offer?

A: The standard size is 10m x 6m x 5m with galvanized corrugated steel roofing and insulated sandwich wall panels, designed for wind loads up to 150 km/h and earthquake zones IV/V. Options for single and double doors, sliding and fixed windows, are included.
